Hight Brightness PCAP Touch Display
KOT-0320U-CA4PHDifferentiated customized touch display, independent R&D design, ODM/OEM available.
KeeTouch waterproof capacitive sensor allows wet finger operation, providing high-quality touch experience even in harsh environments.
High brightness, visible in direct sunlight.
Anti-glare and tempered cover glass.
●IP65 (front surface)
-
This PCAP touch monitor comes with features: 1920x1080 high resolution, 16:9 ratio, full viewing angle and 4000:1 contrast ratio. Also, it has anti-glare, anti-vandal and IP65 surface waterproof functions. VGA, DVI and HDMI interfaces are provided, and a USB port for touch input. Multiple mounting methods are available, including VESA mount, horizontal and vertical brackets mount. Also, we offer customized services.
Application:
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for since 2006, located in Shenzhen, China.
2. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4.What package do you provide?
Our package usually is carton.
5.Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6.What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7.Do you give any discount for the high brightness touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
-
Complete Machine
Model No.
KOT-0320U-CA4PH (P/N:KOT-320P-025)
Series
OT
Display Type
16:9 Ratio 32" TFT-LCD
Active Area
698.4*392.85 (mm)
Monitor Dimensions (W*H*D)

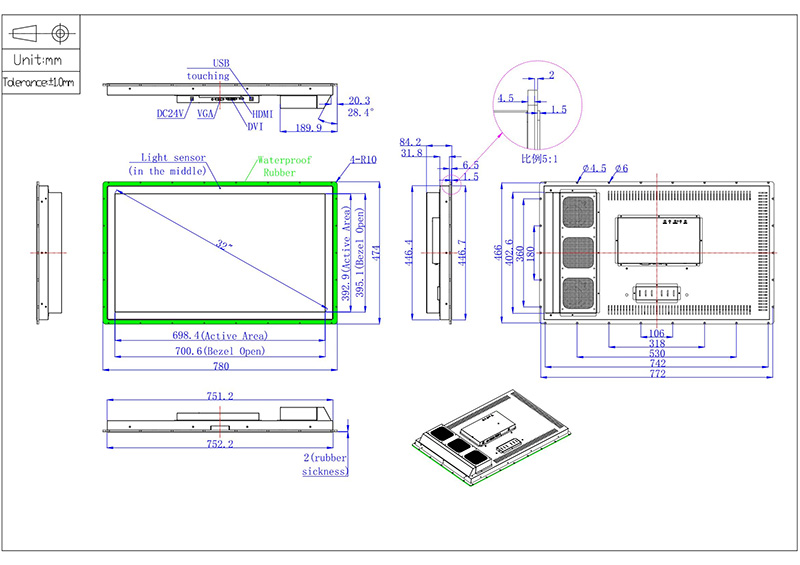

780*474*84.2(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
1000cd/m2 , 1500cd/m2 , 2000cd/m2
With Touch Monitor
850cd/m2 , 1250cd/m2 , 1650cd/m2
Response Time (Typ.)
6.5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
4000:1(Typ.)/3000:1(Min.)
Video Input
VGA\DVI\HDMI
Frequency (H/V)
60～73KHz / 47～63Hz
Power Supply
Type: External brick
Display voltage: DC 24V/ 10A
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Power Consumption
≤150W/190W/240W
Mount Interface
Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
32" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
≥6H
Light Transmittance
≥83%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
