Capacitive Touch Monitor KOT-0230U-CA4P

KOT-230P-006(KOT-0230U-CA4P)

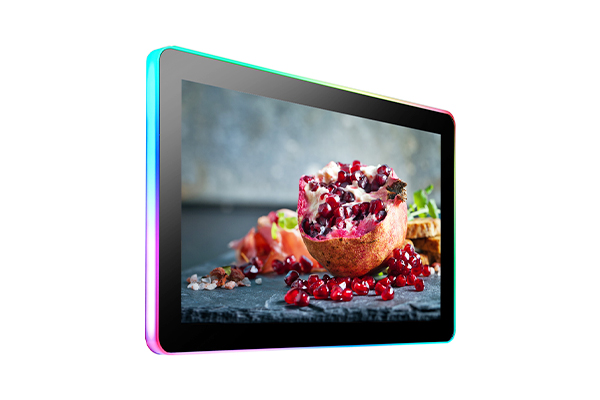

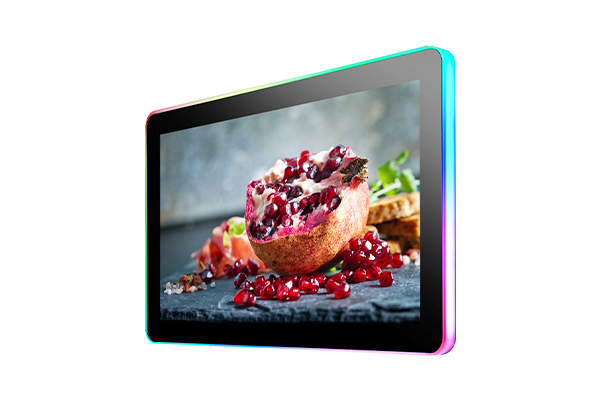

This PCAP touch monitor comes with main features as below: 1920*1080 high resolution, 1000:1 contrast ratio, IP65 front waterproof, anti-vandal and dust-proof with full viewing angle. The PCAP touch monitor provides VGA and DVI interfaces for use, USB for touch. With LED flexible strip, fashionable and attractive. It is ideal choice for gaming industry. Also, other sizes can be for your option (7’’- 43’’).

Contact

Features
Technical Indicators

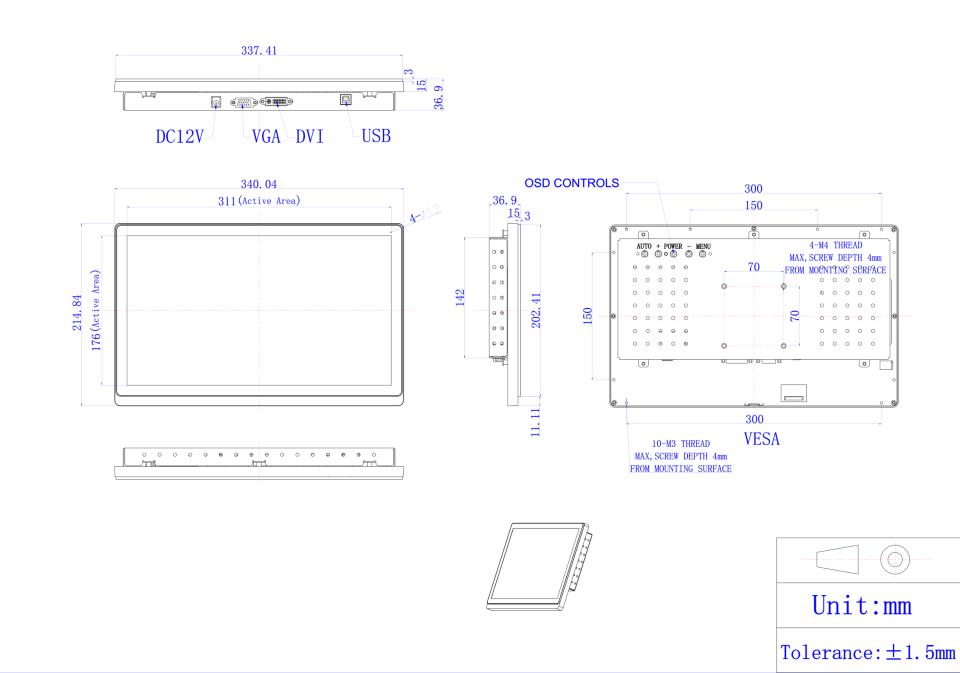

Overall Dimension

Advantages of PCAP Touch Monitor
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.

FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
Complete Machine
Model No.
KOT-0230U-CA4P (P/N:KOT-230P-006)
Series
OT
Display Type
16:9 Ratio 23" TFT-LCD
Active Area
511.8*289(mm)
Monitor Dimensions (W*H*D)
569*348.2*45(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m2
With Touch Monitor
212cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz
LED display mode
45 kinds
LED display speed
10 level
LED brightness control
10 level
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
7.1 Kg (1pcs) / 18.35 Kg (2pcs in one package)
Package dimensions
650*435*195 (mm) (2pcs in one package)
Power Consumption
Standby Power: ≤2W / Operating Power: ≤30W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
23" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
513.80*291.00(mm)
Thickness
4.3±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%

Get the latest price? We well respond as soon as possible(within 12 hours)

Complete Machine
Model No.	KOT-0230U-CA4P (P/N:KOT-230P-006)
Series	OT
Display Type	16:9 Ratio 23" TFT-LCD
Active Area	511.8*289(mm)
Monitor Dimensions (WHD)	569348.245(mm)
Suggested Resolution	1920*1080 @ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	250cd/m2
	With Touch Monitor	212cd/m2
Response Time (Typ.)	5ms
Viewing Angle(Typ.at CR＞10)）	Horizontal(left/right)	89°/89°
	Vertical(up/down)	89°/89°
Contrast Ratio (Typ.)	1000:01:00
Video Input	VGA/DVI
Frequency (H/V)	37.9～80KHz / 60～75Hz
LED display mode	45 kinds
LED display speed	10 level
LED brightness control	10 level
Power Supply	Type: External brick
	Display voltage: DC 12V±5%
	Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	≥30,000 Hours
LED Back Light Life (Typ.)	≥30,000 Hours
Weight（N.W/G.W）	7.1 Kg (1pcs) / 18.35 Kg (2pcs in one package)
Package dimensions	650435195 (mm) (2pcs in one package)
Power Consumption	Standby Power: ≤2W / Operating Power: ≤30W
Mount Interface	1.VESA 75mm and 100mm
	2.Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO,+,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty	1 year
Touch Screen
Touch Type	23" Capacitive touch screens
Touch input	USB
Response Time	≤10ms
Hardness	6H
Light Transmittance	≥85%
Support System	XP,WIN7,WIN8,WIN10,Linux,Android
Active Area	513.80*291.00(mm)
Thickness	4.3±0.2(mm)
Touch Test	≥50,000,000 times
Input Voltage	DC 5V±5%
