Capacitive Touch Monitor KOT-238P-002
KOT-0238U-CA4P(KOT-238P-002)KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
-
PCAP Touch Monitor Main Features:
1.PCAP multi-touch screen, up to 10 points touch
2.Dust-proof and vandal-proof PCAP touch monitor with full viewing angle
3.High contrast ratio and high resolution PCAP touch monitor, high-quality image
4.Industrial grade, lasting touch, durable even in harsh environment
5.VGA/DHMI interfaces,USB for touch input
6.Multiple mounting options include VESA mount, horizontal vertical brackets mount
7.Support system: XP, WIN7, WIN8, WIN10, Linux, Android
8.Other sizes are optional (7’’-43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0238U-CA4P (P/N:KOT-238P-002)
Series
OT
Display Type
16:9 Ratio 23.8" TFT-LCD
Active Area
528*297.5(mm)

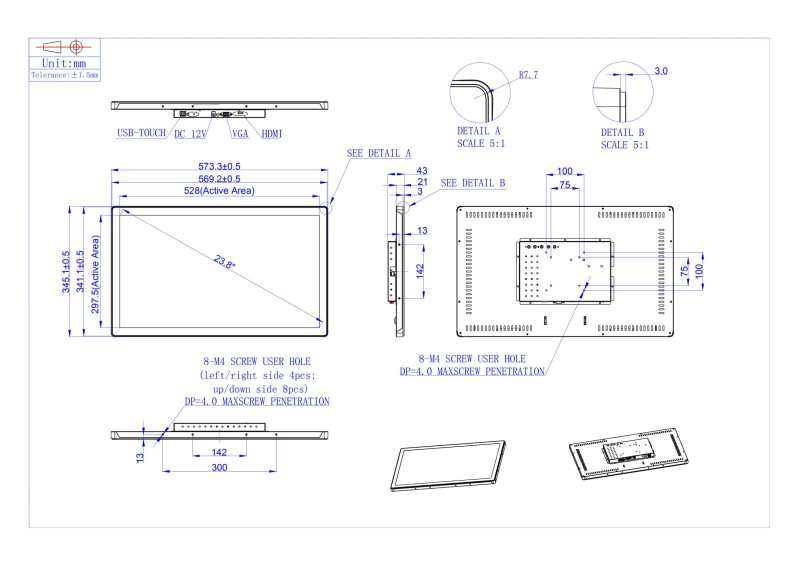

Monitor Dimensions (W*H*D)
573.3*345.1*43(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m2
With Touch Monitor
215cd/m2
Response Time (Typ.)
14ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/HDMI
Frequency (H/V)
30～82KHz / 50～75Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Operating Temp.
0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Power Consumption
Standby Power: 2W / Operating Power: ≤27W
Mount Interface
1. VESA 75mm and 100mm
2. Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
23.8" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
7H
Light Transmittance
≥87%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Glass Thickness
3(mm)
Touch Test
≥50,000,000 times
-
