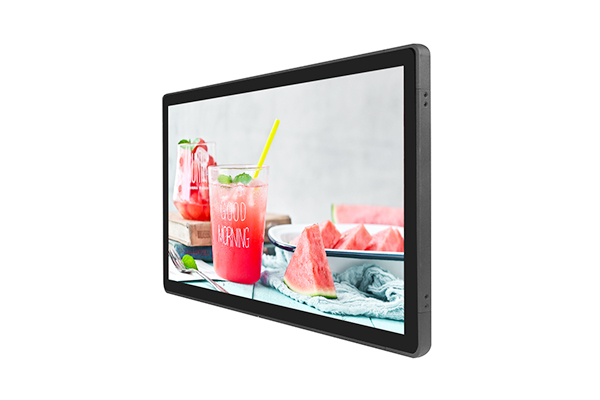

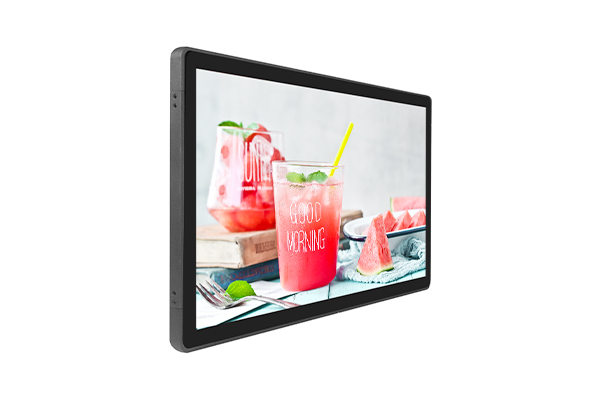

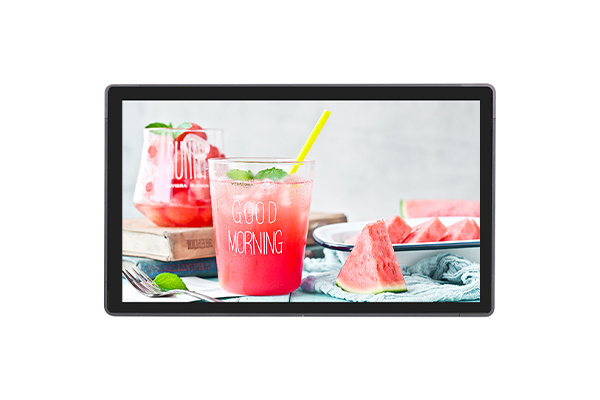

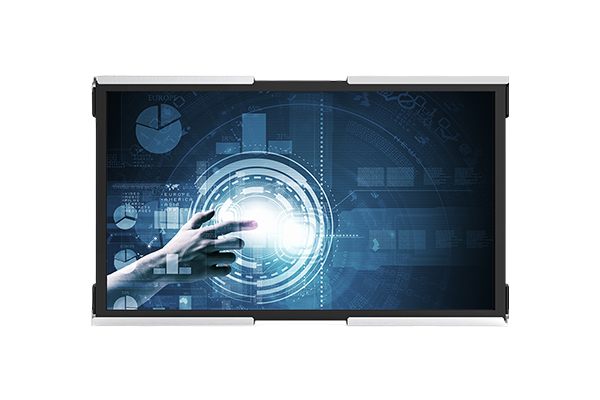

Capacitive Touch Monitor KOT-0270U-CA2P
KOT-270P-006(KOT-0270U-CA2P)This PCAP touch monitor comes with main features as following: 1920*1080 high resolution, 3000:1 contrast ratio, 250 nits brightness, anti-vandal and IP65 waterproof with full viewing angle. This PCAP touch monitor provides VGA, DVI and HDMI interfaces for use, USB for touch. It is industrial grade with pure flat design, durable and fashionable. Also, customized services can be offered.
-
Advantages of PCAP Touch Monitor
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional). -
Complete Machine
Model No.
KOT-0270U-CA2P (P/N:KOT-270P-006)
Series
OT
Display Type
16:9 ratio 27" TFT-LCD, LED backing
Active Area
599.3*337.8(mm)

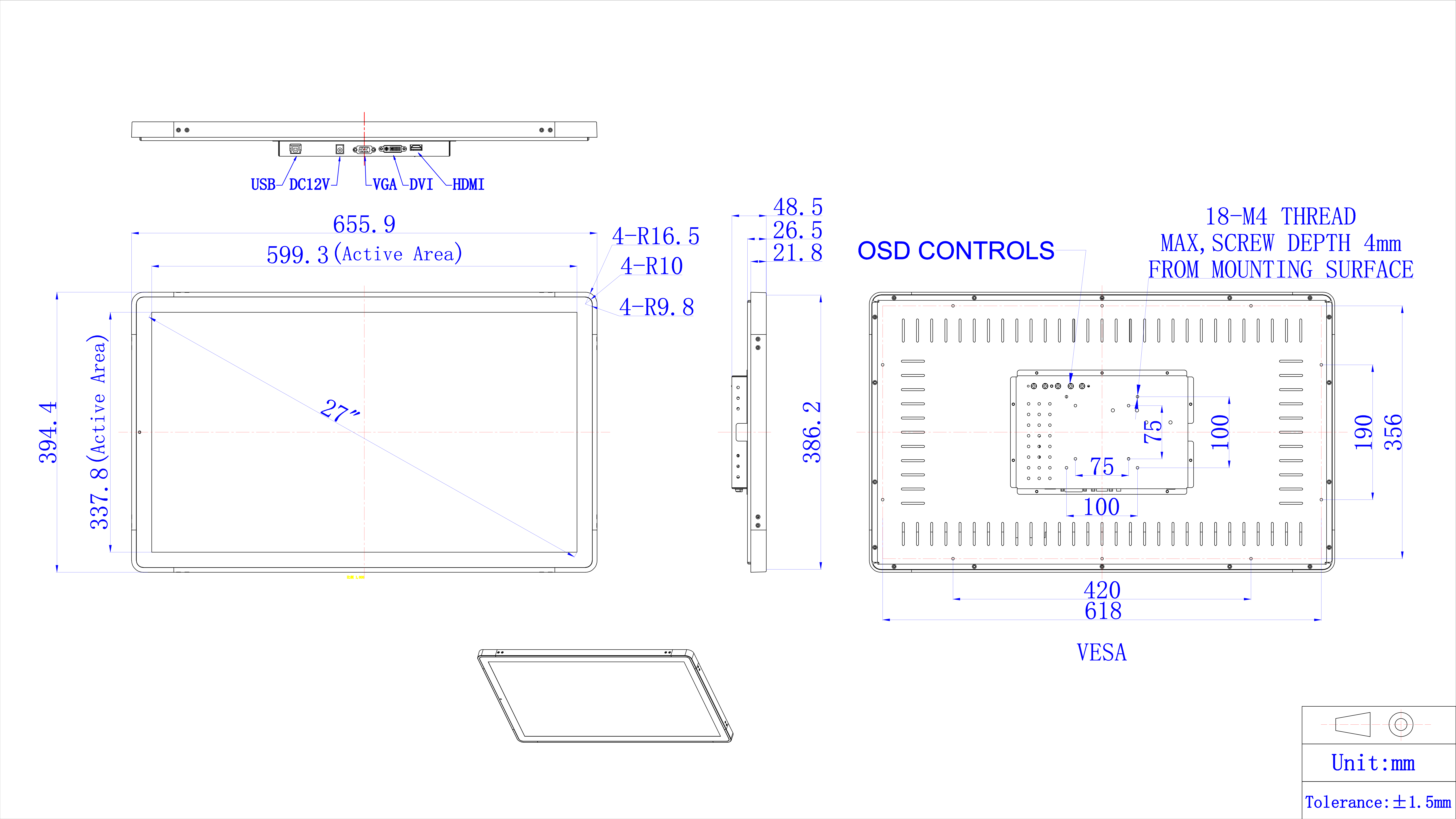

Monitor Dimensions (W*H*D)
655.9*394.4*48.5(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
300cd/m²
With Touch Monitor
250cd/m²
Response Time (Typ.)
12ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right):89°/89°
Vertical(up/down): 89°/89°
Contrast Ratio (Typ.)
3000:01:00

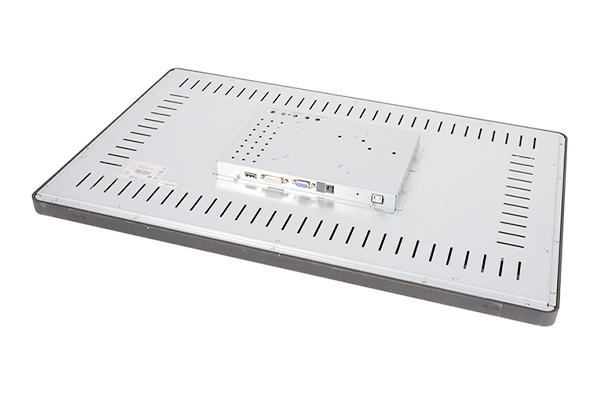

Video Input
VGA/DVI/HDMI
Frequency (H/V)
30～80KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～80%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Power Consumption
Standby Power: ≤2W / Operating Power: ≤35W

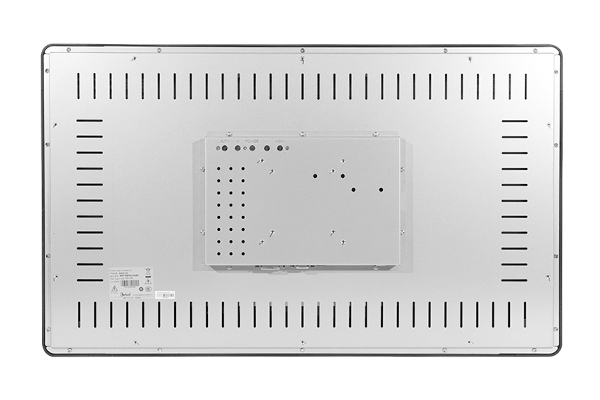

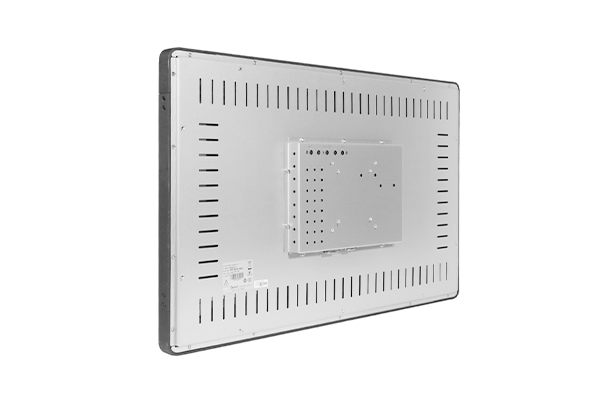

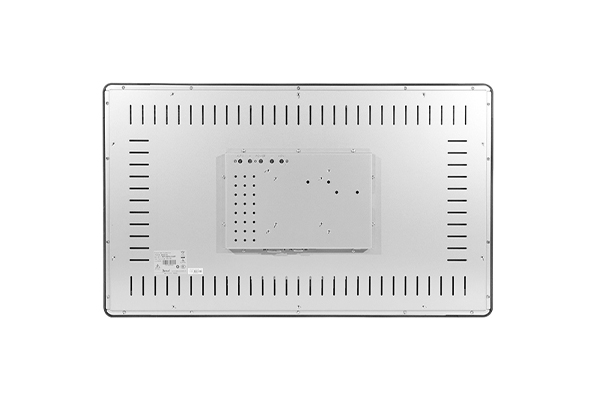

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch Type
27" Capacitive touch screens
Touch Input
USB
Support System
WIN7, ten touch points
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
