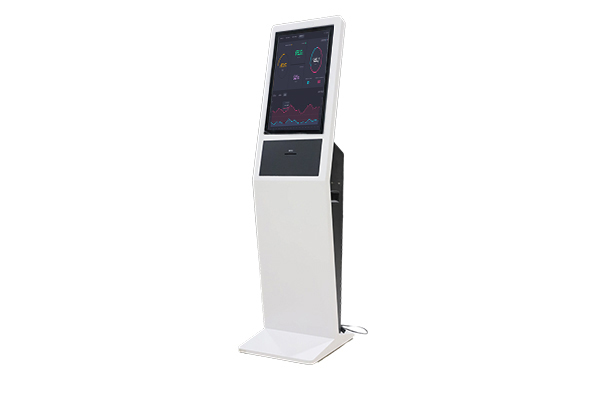

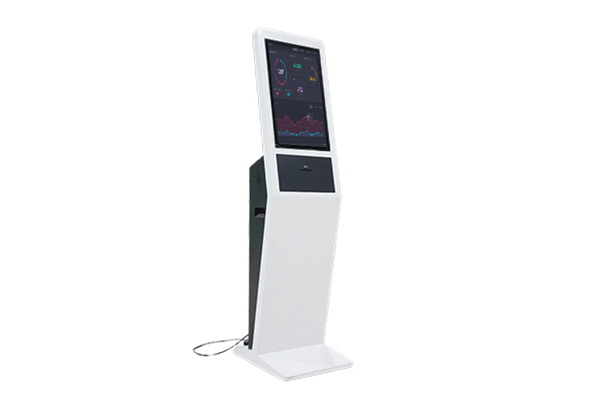

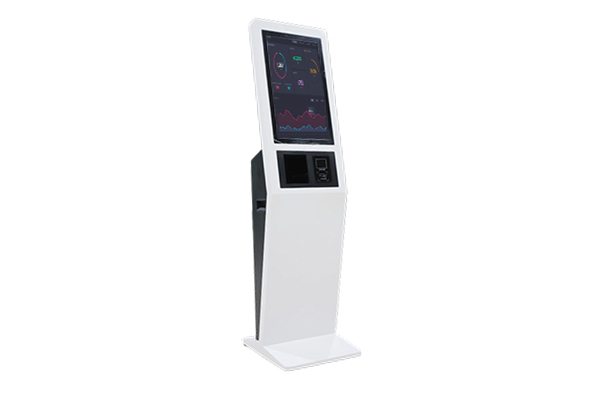

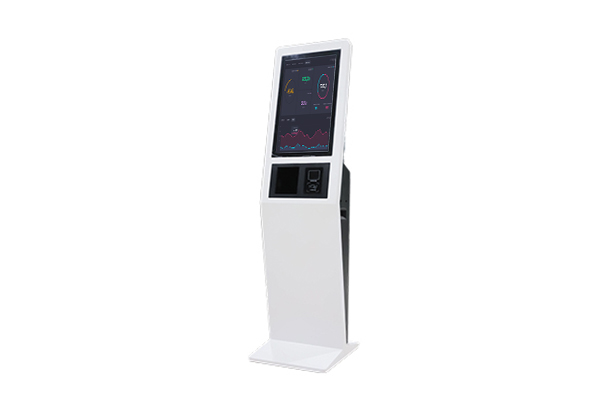

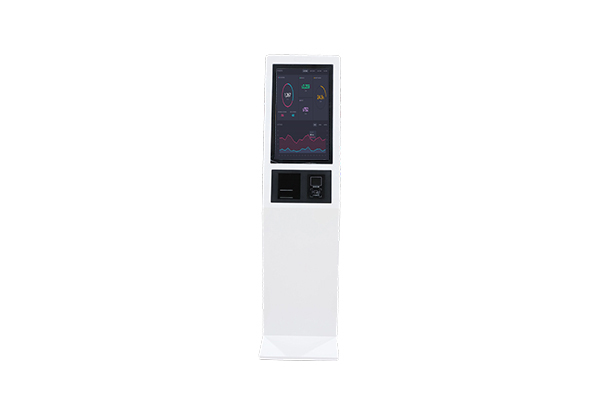

27-Inch Self-Service Machine

①Supports 10-point touch, multi-functional self-service machine. KeeTouch capacitive sensor provides stable and sensitive touch experience and high-definition visual enjoyment. Binocular camera, metal password keyboard, card reader, scanner 4mm tempered cover glass, aluminum alloy frame, cold-rolled steel back shell.
②Customized case, touch display, customized color, minimum order of one piece.

Contact

Features
Technical Indicators

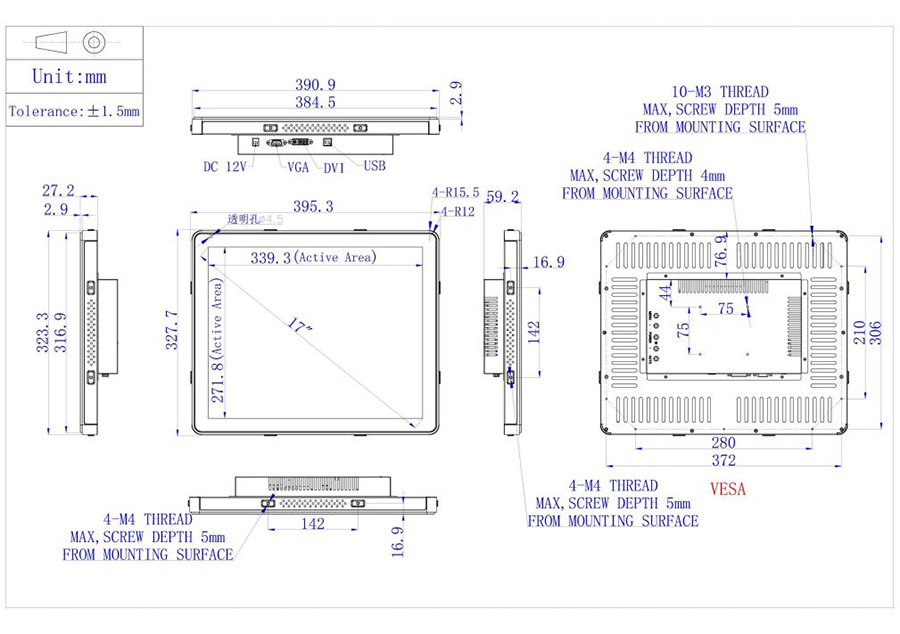

Overall Dimension


Complete Machine
Model No.
KOT-0170U-CA4P (P/N:KOT-170P-023)
Series
OT
Display Type
5:4 Ratio 17" TFT-LCD
Active Area
337.9*270.3 (mm)
Monitor Dimensions (W*H*D)
395.3*327.7*59.2 (mm)
Suggested Resolution
1280*1024 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
400cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:1
Video Input
VGA/DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz

Power Supply
Type: External brick
Display voltage: DC 12V 3A±5%
Input (line) voltage: 100-240 V/AC, 50-60 Hz
Power Adapter DC Head Inner Diameter:2.1mm

Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（ N.W/G.W）
4.65Kg(1pcs)/10.25Kg(2 pcs in one package)
Package dimensions
466* 185*403(mm)(2 pcs in one package)
Power Consumption
Standby Power: ≤0.82W / Operating Power: ≤7.3W

Mount Interface
1.VESA 75mm
2.Mount bracket, horizontal or vertical mount

OSD Control
Buttons
AUTO, +,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
17" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥83%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
340.92*273.34(mm)
Thickness
3.9±0.3(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%

Get the latest price? We well respond as soon as possible(within 12 hours)

Complete Machine
Model No.	KOT-0170U-CA4P (P/N:KOT-170P-023)
Series	OT
Display Type	5:4 Ratio 17" TFT-LCD
Active Area	337.9*270.3 (mm)
Monitor Dimensions (WHD)	395.3327.759.2 (mm)
Suggested Resolution	1280*1024 @ 60Hz
Support Colors	16.7M
Brightness (Typ.)	Pure LCD Panel	400cd/m2
Response Time (Typ.)	5ms
Viewing Angle(Typ.at CR＞10)）	Horizontal(left/right)	85°/85°
	Vertical(up/down)	80°/80°
Contrast Ratio (Typ.)	1000:1
Video Input	VGA/DVI
Frequency (H/V)	37.9～80KHz / 60～75Hz
Power Supply	Type: External brick Display voltage: DC 12V 3A±5% Input (line) voltage: 100-240 V/AC, 50-60 Hz Power Adapter DC Head Inner Diameter:2.1mm
Environment	Operating Temp.	0～50°C
	Operating RH	20%～80%
	Storage Temp.	-20～60°C
	Storage RH	10%～90%
MTBF	≥30,000 Hours
LED Back Light Life (Typ.)	≥30,000 Hours
Weight（ N.W/G.W）	4.65Kg(1pcs)/10.25Kg(2 pcs in one package)
Package dimensions	466* 185*403(mm)(2 pcs in one package)
Power Consumption	Standby Power: ≤0.82W / Operating Power: ≤7.3W
Mount Interface	1.VESA 75mm 2.Mount bracket, horizontal or vertical mount
OSD Control	Buttons	AUTO, +,POWER,-,MENU
	Function	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals	CCC, UL, FCC, CE, CB, RoHS
Regular Warranty	1 year

Touch Screen
Touch Type	17" Capacitive touch screens
Touch input	USB
Response Time	≤10ms
Hardness	6H
Light Transmittance	≥83%
Support System	XP,WIN7,WIN8,WIN10,Linux,Android
Active Area	340.92*273.34(mm)
Thickness	3.9±0.3(mm)
Touch Test	≥50,000,000 times
Input Voltage	DC 5V±5%
