Capacitive Touch Display KOT-097P-003

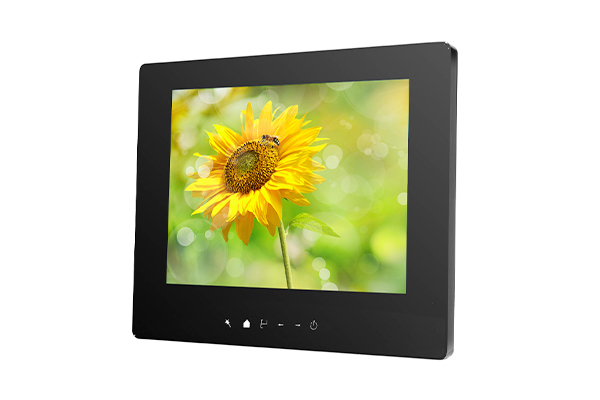

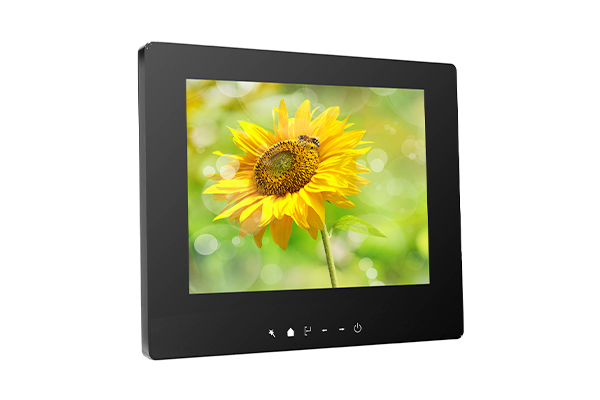

KOT-097P-003Description of PCAP Touch Monitor
This PCAP touch monitor delivers main features as following: 1024*768 resolution, 500:1 contrast ratio, anti-scratch, vandal proof and dust-proof with wide viewing angle. In addition, it can even operate normally in harsh environments, boasting an extremely long lifespan and providing users with a satisfying experience. OEM and ODM services are welcomed.
-
Advantages of PCAP Touch Monitor：
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:1.What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only2.What is your payment method?We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)3. What package do you provide for the PCAP touch monitor？Our package usually is carton box. -
Complete Machine
Model No.
KOT-097P-003
Type
OT
Display Type
4:3 Ratio 9.7＂TFT-LCD, LED backlight
Active Area
196.6 x 147.46mm

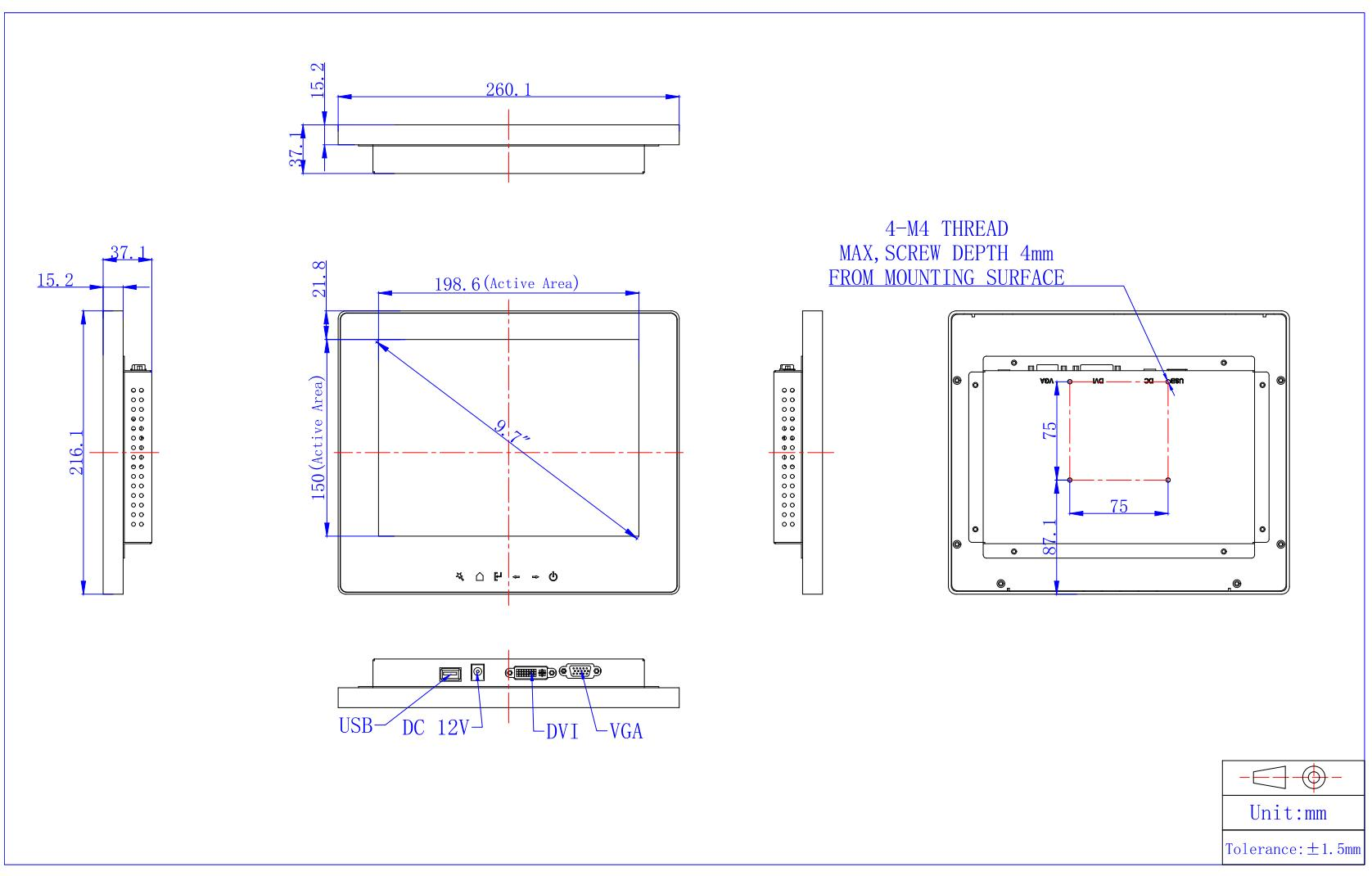

Monitor Dimensions (W*H*D)
259*215*38.8(mm)
Suggested Resolution
1024*768
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
300cd/m²(Typ.)/220cd/m²(Min.)
With Touch Monitor
238cd/m²(Typ.)/167cd/m²(Min.)
Response Time (Typ.)
20ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
70 °/70 °(Typ.)/ 60 °/70 °(Min.)
Vertical(up/down)
80 °/80 °(Typ.)/70 °/80 °(Min.)
Contrast Ratio (Typ.)
500:1(Typ.)/400:1(Min.)

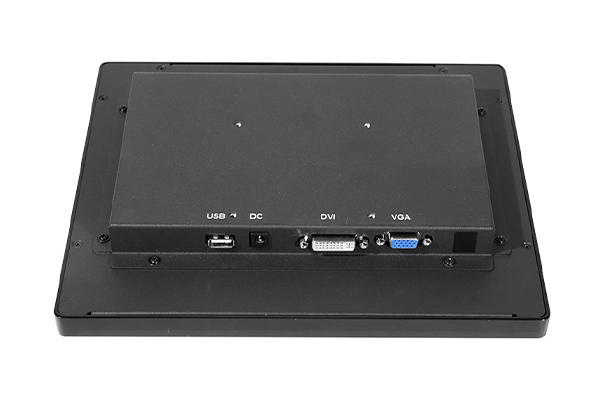

Video Input
VGA/DVI
Frequency (H/V)
43.86～60KHz / 60～75Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
The DC inner diameter of power adapter: 2.1mm
Operating Temp.
0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥ 10,000 hours
LED Back Light Life (Typ.)
≥ 10,000 hours
Weight(N.W/G.W)
2Kg(1pcs)/4.5Kg(2pcs in one package)
Package dimensions
259.38*215.48*39.66(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W Operating Power: ≤12W

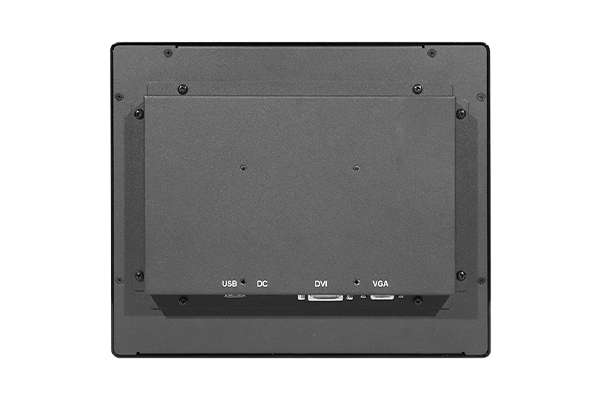

Mount Interface
1. VESA 75mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
Confirm, MENU, AUTO, Up, Down, Power
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Regular Warranty
1 year
Touch Screen
Touch Type
9.7 inch Projected Capacitive Riot-proof Touch Screen
Touch input
USB
Response Time
≤15ms
Touch Screen Resolution
16384*9600
Hardness
6H
Light Transmittance
>85%
Riot Test
Meets 130g Steel Ball, 50cm Drop Experiment
Support System
WIN7、WIN8、WIN10 support 10 points, XP support single point
Active Area
197.6*148.5(mm)
Thickness
1.85±0.2(mm)
Touch Test
≥ 50,000,000 times
Input Voltage
DC 5V±5%
-
