Capacitive Touch Display KOT-0150UA-CA6PHA
KOT-150P-015-01（KOT-0150UA-CA6PHA)Description of PCAP Touch Monitor
This PCAP touch monitor has main features as below: 1024*768 high resolution, 1000:1 contrast ratio, anti-glare, anti-vandal and dust-proof with full viewing angle. The PCAP touch monitor provides VGA and DVI interfaces for use, USB port for touch. It is industrial grade PCAP touch monitor with high quality, which can be normally used in harsh environment. Also, per customers’ requirements, OEM and ODM services can be offered.
-
Advantages of PCAP Touch Monitor：
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:
1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
-
Complete Machine
Model No.
KOT-0150UA-CA6PHA（P/N：KOT-150P-015-01）
Series
OT
Display Type
4:3 Ratio 15" TFT-LCD
Active Area
304.128×228.096(mm)

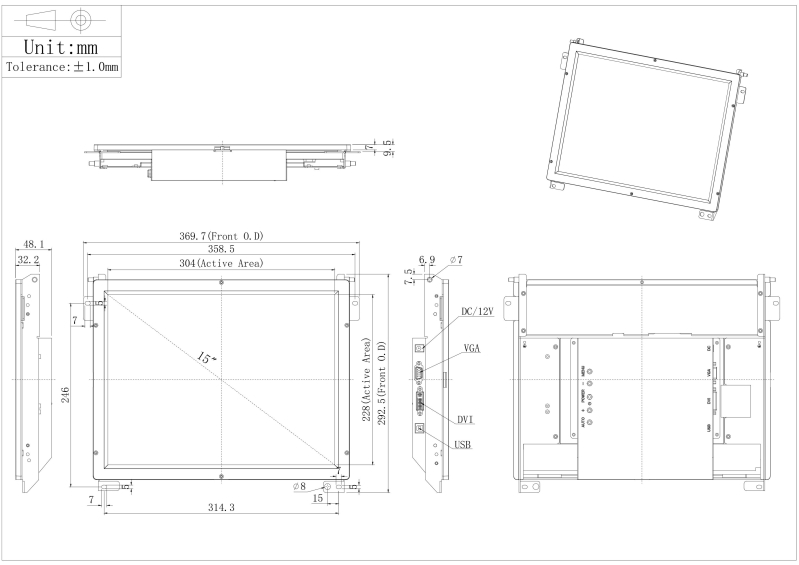

Monitor Dimensions (W*H*D)
369.7*292.5*48.1(mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
350cd/m2(Typ.)/315cd/m2(Min.)
With Touch Monitor and peep-proof protection film
178.5cd/m2(Typ.)/161cd/m2(Min.)
Response Time (Typ.)
30ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°(Typ.)/85°/85°(Min.)
Vertical(up/down)
89°/89°(Typ.)/85°/85°(Min.)
Contrast Ratio (Typ.)
1000:1(Typ.)/700:1(Min.)
Video Input
VGA/DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240V AC, 50-60 Hz
The DC inner diameter of power adapter:2.1mm
Environment
Operating Temp.
-10～50°C
Operating RH
10%～90%
Storage Temp.
-20～70°C
Storage RH
10%～90%
MTBF
≥50,000 Hours
LED Back Light Life (Typ.)
≥50,000 Hours
Weight（N.W/G.W）
3.0Kg(1pcs)/7.2Kg(2pcs in one package)
Package dimensions
445*200*395(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤15W
Mount Interface
Mount bracket, horizontal or vertical mount

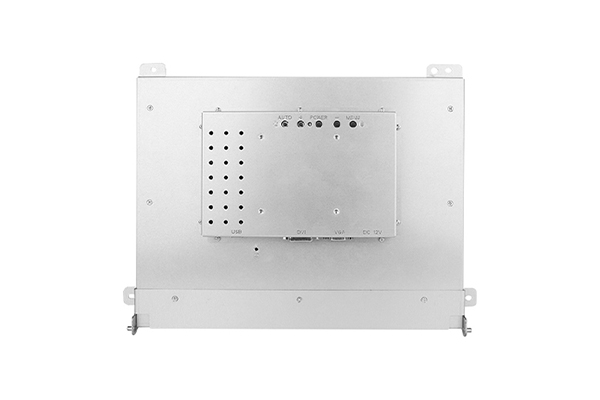

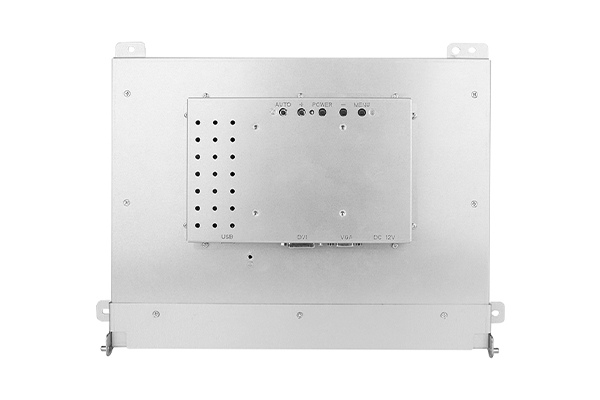

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
15" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Resolution ratio
16384*9600
Hardness
7H
Light Transmittance
≥85%
Anti-vandal test
500g steel ball drop from 1.3m high test
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
304*228(mm)
Thickness
3.9±0.2(mm)
Touch Test
50,000,000 times
Input Voltage
5V
Peep-proof protection film
Type
peep-proof protection film
The angle range of Anti-peep
Horizontal(left/right): 35°±5°
Thickness
0.58±0.05(mm)
Light Transmittance
≥60%±5%
-
