Capacitive Touch Display KOT-0170U-CA4P
KOT-170P-010(KOT-0170U-CA4P)This PCAP touch monitor delivers below main features: 1280*1024 resolution, 1000:1 contrast ratio, IP65 front frame waterproof, anti-vandal and dust-proof with wide viewing angle. The PCAP touch monitor comes with VGA and DVI interfaces for your use, USB for touch. Also, with professional R&D department, OEM and ODM services are available. And other sizes can be offered (7’’- 43’’).
-
Advantages of PCAP Touch Monitor：
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:
1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional). -
Complete Machine
Model No.
KOT-0170U-CA4P
Series
OT
Display Type
5:4 Ratio 17" TFT-LCD
Active Area
337.9*270.3(mm)

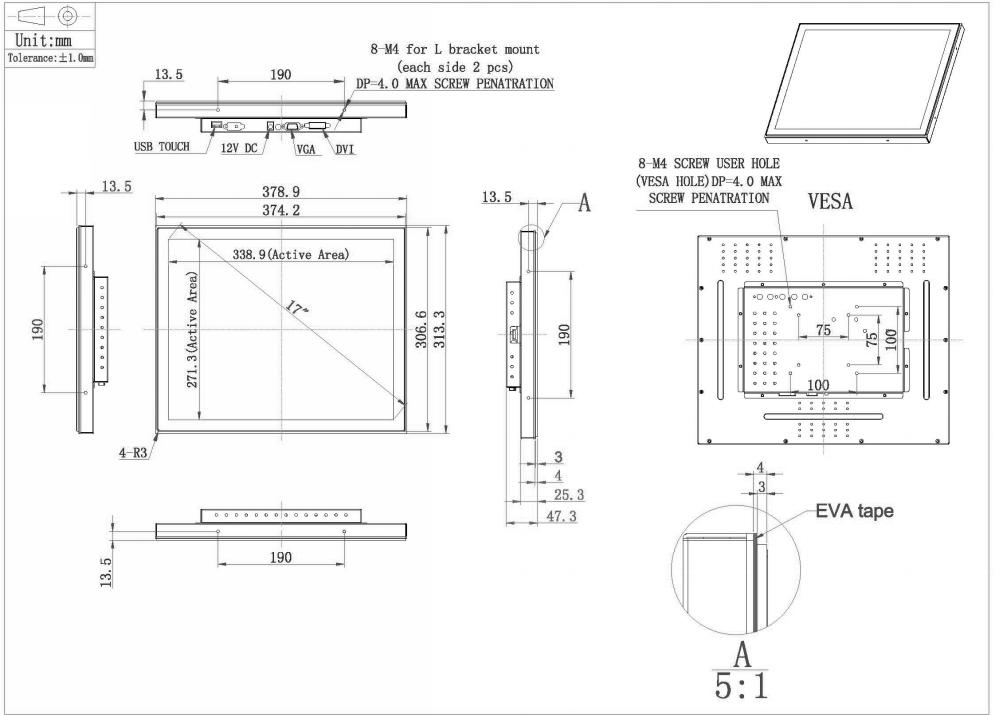

Monitor Dimensions (W*H*D)
378.9*313.3*47.3(mm)
Suggested Resolution
1280*1024 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m2
With Touch Monitor
212cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00

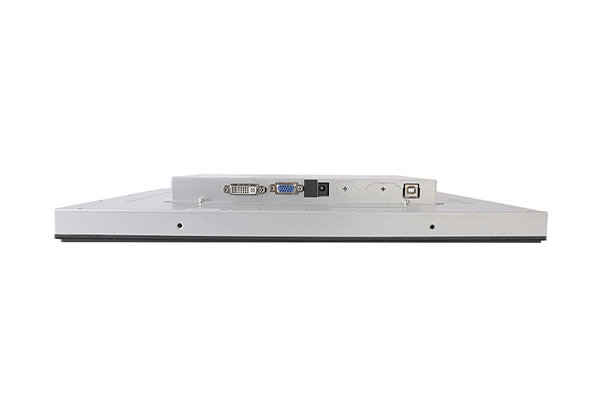

Video Input
VGA/DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Operating Temp.
0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（ N.W/G.W ）
4.1Kg(1pcs)/9.85Kg(2pcs in one package)
Package dimensions
466*185*403(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO, +,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
17" Riot capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
340.92*273.34(mm)
Thickness
3.9±0.3(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
