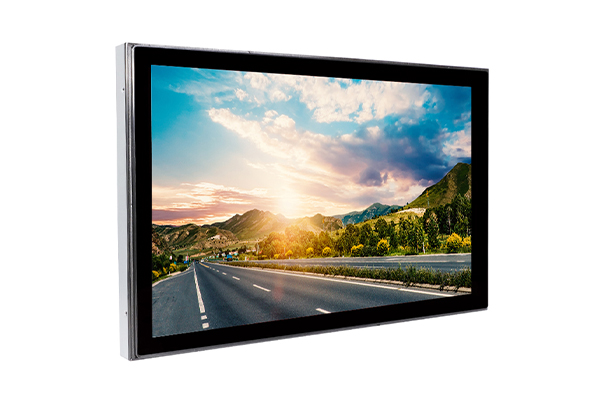

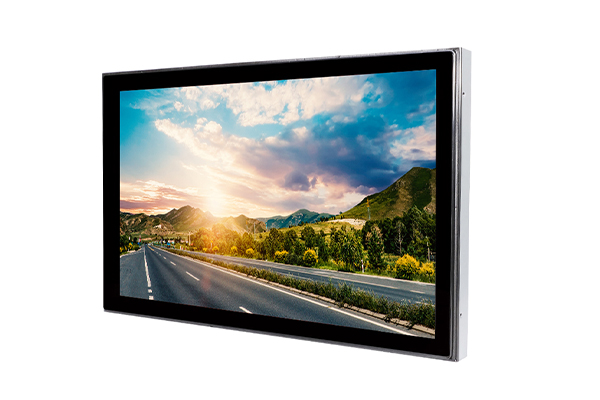

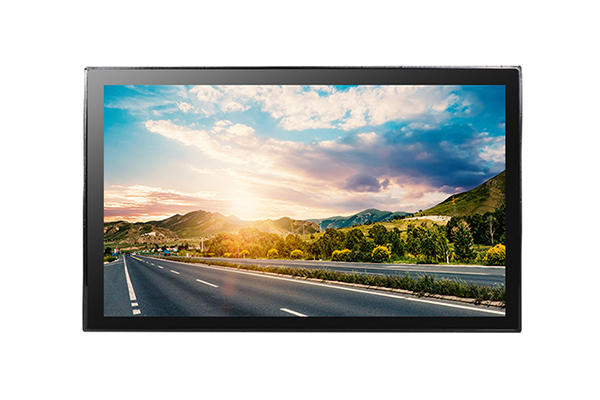

Capacitive Touch Display KOT-185P-014
KOT-0185U-CA4P(KOT-185P-014)his PCAP touch monitor comes with anti-glare, IP65 waterproof and vandal-proof functions, delivering superior quality image with multi-touch points, offering super touch experience. The VGA and HDMI interfaces are provided for use and it supports various operating systems: XP, WIN7, WIN8,WIN10, Linux, Android. And other sizes (7’’-43’’) are for your option.
-
18.5 Inch PCAP Touch Monitor 16:9 Ratio Display 500 Nits Brightness：1.With PCAP touch screen, fast response and high sensitivity
2.1920x1080 high resolution, 1000:1 high contrast with high image quality
3.Anti-glare, vandal-proof and IP65 waterproof PCAP touch monitor
4.VGA&HDMI interfaces, USB port for touch
5.Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6.Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
7.Other sizes are optional (7’’- 43’’).
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0185U-CA4P (P/N:KOT-185P-014)
Series
OT
Display Type
16:9 Ratio 18.5" TFT-LCD
Active Area
409.8*230.4(mm)

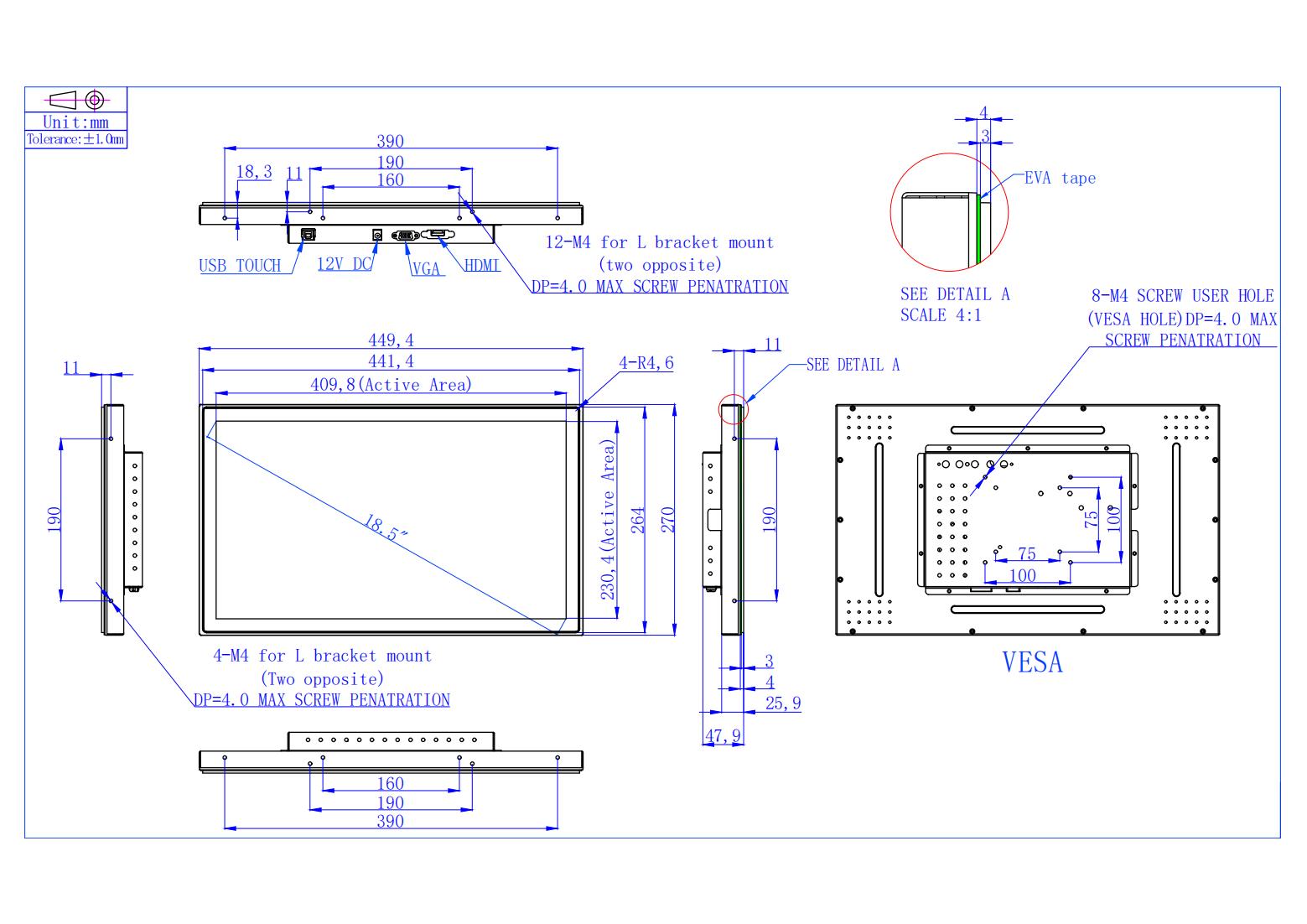

Monitor Dimensions (W*H*D)
449.4*270*47.9(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
500cd/m2
With Touch Monitor
400cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/HDMI
Frequency (H/V)
37.8～68.4KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
3.64Kg(1pcs)/8.93Kg(2pcs in one package)
Package dimensions
525*190*385(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤25W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

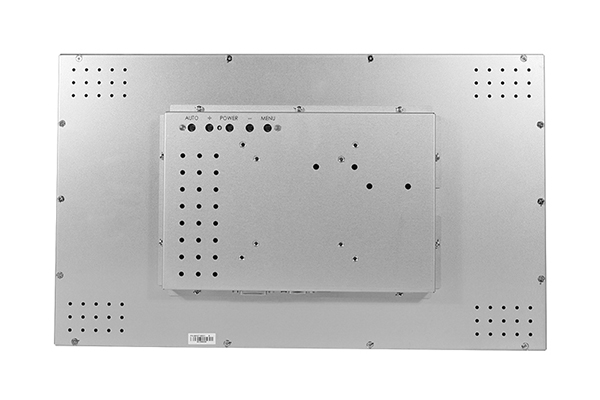

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
18.5" capacitive touch screens (anti-glare,antifungal)
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥80%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
410.8*231.4(mm)
Thickness
4.3±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
