Capacitive Touch Display KOT-0185U-CA4P

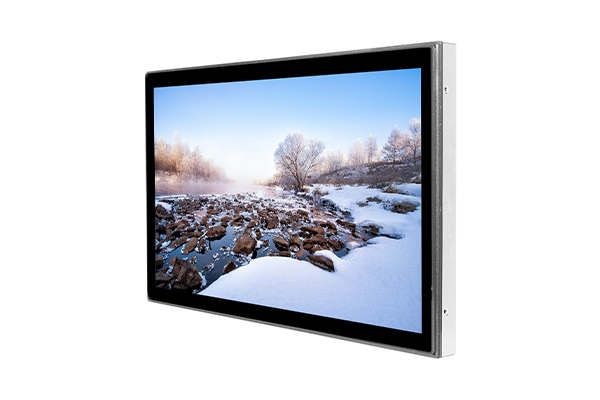

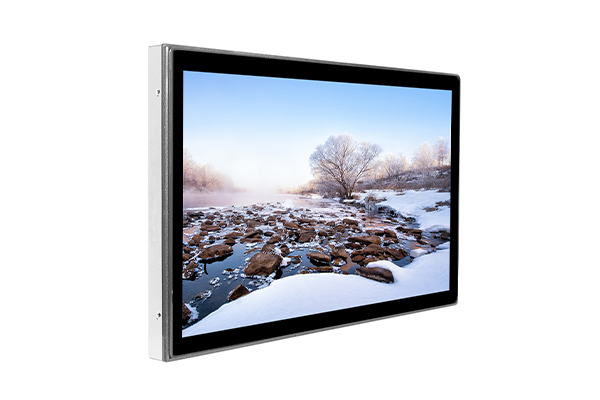

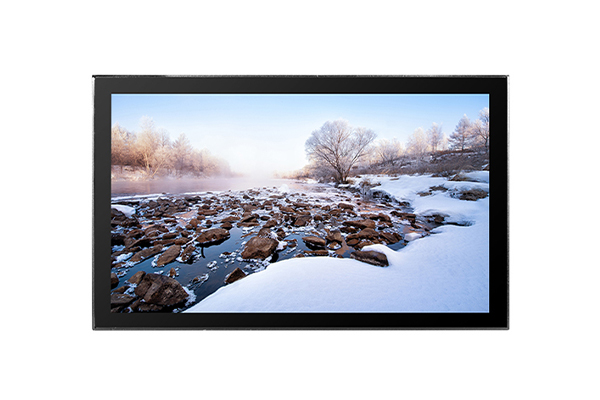

KOT-185P-007(KOT-0185U-CA4P)18.5" LCD Open Frame PCAP Touch Monitor
-
Product Feature：

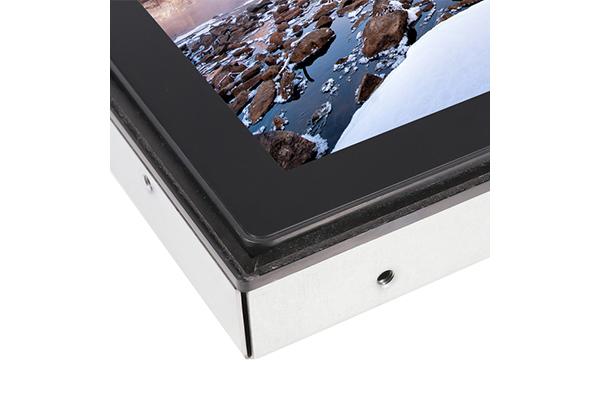

1.Narrow edge flat display touch solutions. Long lasting product cycle-enclosure controlled by KeeTouch specifications, so that future upgrades do not bring external size changes.
2.High brightness, high contrast ratio and broad viewing angle.

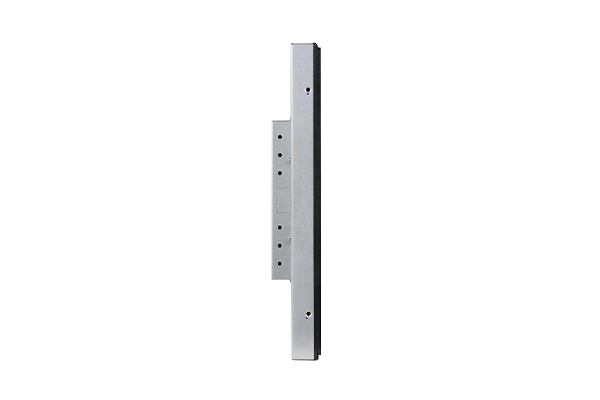

3.Multiple mounting options including horizontal bracket mount, vertical bracket mount and VESA mount.
4.USB touch interface port.
5.VGA/DVI input video format.
6.CCC,ETL,FCC,CE,CB,UL,RoHS certificates.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
-
Model No.
KOT-0185U-CA4P
Series
OT，Narrow Edge
Display Type
16:9 Ratio 18.5＂Active Matrix TFT-LCD, LED Backlight
Display Active Area
409.8(mm)×230.4(mm)

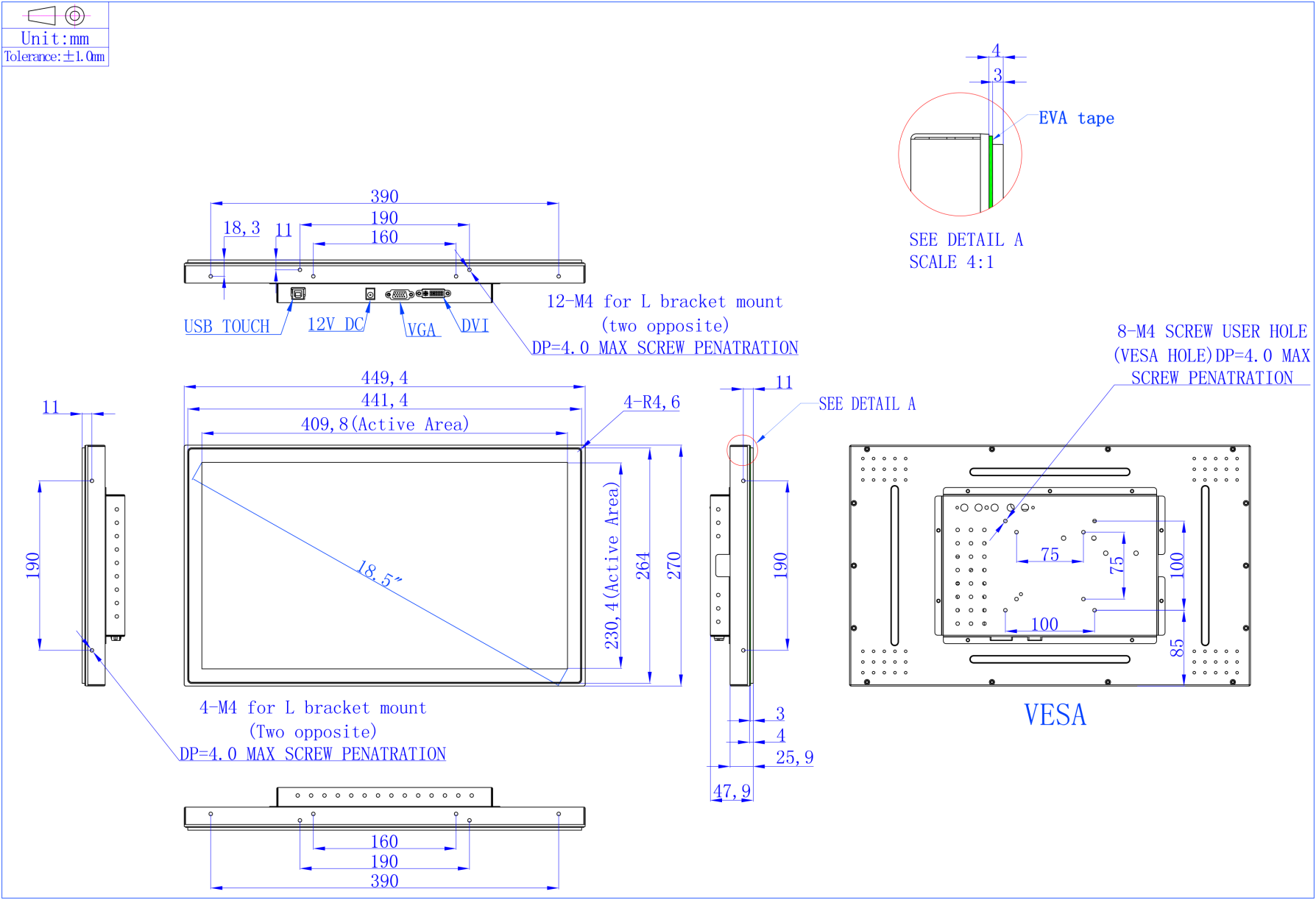

Touch Monitor Dimensions
Width: 449.4mm
Height: 270mm
Depth: 47.9mm
Suggested Resolution
1366X768 @ 60Hz
Support Colors
16.7M
Brightness(Typ.)
Pure LCD Panel
250cd/m2
With Projected Capacitive Touchscreen
212cd/m2
Response Time(Typ.)
5ms
Viewing Angle
Horizontal(Left/Right)85°/85°
(Typ.at CR>10)
Vertical(Up/Down)80°/80°
Contrast Ratio(Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency(H/V)
37.8～68.4KHz / 50～76Hz
Power Supply
Type: External Brick
Input (Line) Voltage: 100-240 VAC, 50-60 Hz
Environment
Operation Temp.
0～50°C
Storage Temp.
-20～60°C
Operation RH
20%～80%
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life(Typ.)
30,000 Hours
Weight(N.W/G.W)
3.64kg(1pcs) / 8.93kg(2pcs in One Package)
Package Dimensions
525(L)*190(W)*380(H)mm (2pcs in One Package)
Power Consumption
13W/0.6W(Stand by)
Mount Interface
1)VESA 75mm and 100mm
2)Mount Bracket, Horizontal or Vertical

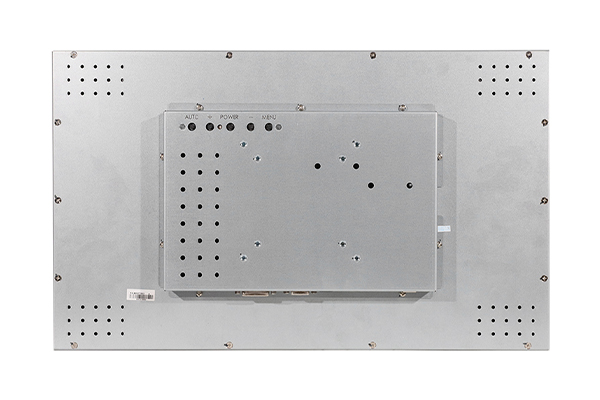

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset
Touch Screen Type
18.5"Projected Capacitive 4.3mm Touchscreen(10 Points Touch for Win7)
Touch System Interface
USB/RS-232（optional）
Touch Response Time
≦10ms
Agency Approval
CCC,ETL,FCC,CE,CB,RoHS
Regular Warranty
1 Year
-
