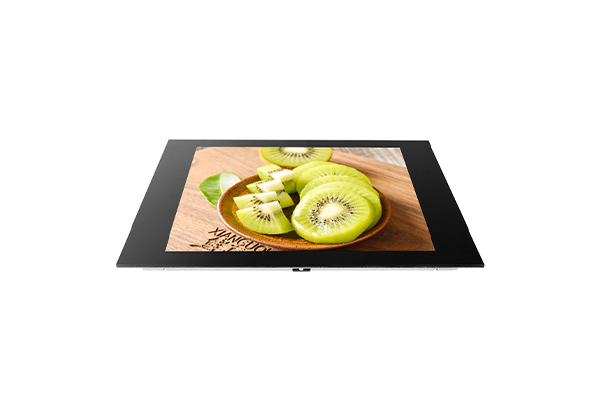

Capacitive Touch Monitor KOT-190P-059
KOT-190P-0591.High brightness, high contrast, wide viewing angle.
2.Professional structural design, industrial-grade.
3.With tempered glass cover, sunshade, life span is more than 50 million times.
4.Worldwide agency approvals.
-
Open Frame Touch Monitor Features：
1、The screen structure adopts a dust-proof sealing design, effectively preventing dust and particles from entering the interior.
2、It utilizes high-sensitivity capacitive touch technology, offering fast response and precise operation for a smooth user experience.
3、The fully laminated process and waterproof sealing design prevent liquids from penetrating the screen's interior.
4、It is suitable for public spaces, finance, healthcare, and other scenarios with high privacy requirements.
5、Multiple specifications and models are available for customization and selection.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
-
Complete Machine
Model No.
KOT-190P-059
Series
OT
Display Type
5:4 Ratio 19" TFT - LCD
Active Area
378.32*303.06(mm)

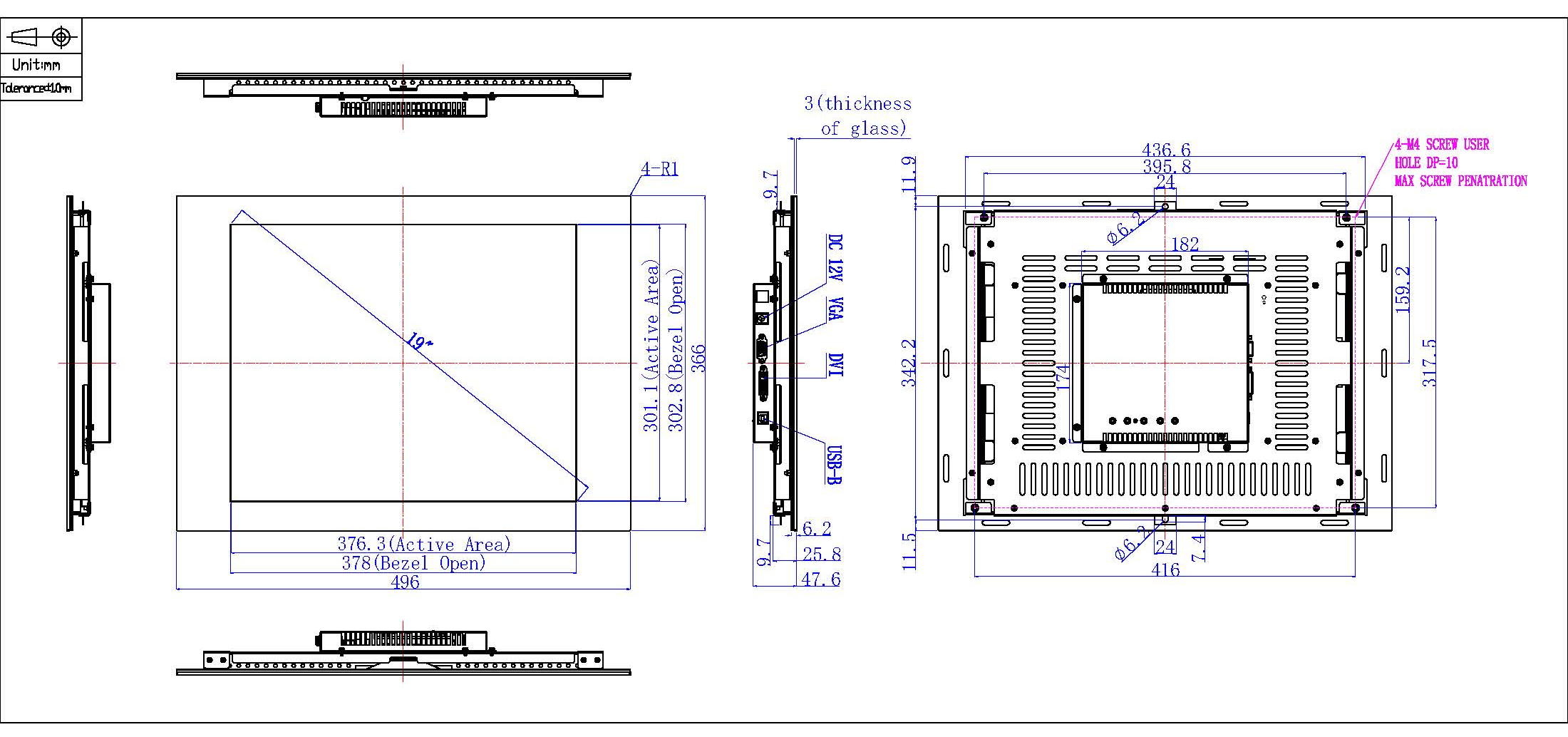

Monitor Dimensions (W*H*D)
496*366*47.6(mm)
Cover plate dimensions
496*366*3.9(mm)
Suggested Resolution
1280*1024
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
380cd/m²
With touch screen, anti-peep film and sun protection film
130cd/m²
Response Time (Typ.)
10ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right):75°/85°
Vertical(up/down): 70°/80°
Contrast Ratio (Typ.)
1000:01:00

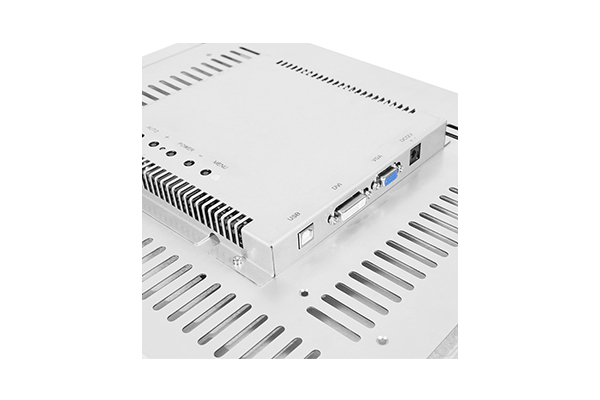

Video Input
VGA/ DVI
Frequency (H/V)
60Hz (Typ.)
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
The DC inner diameter of power adapter: 2.1mm
Environment
Operating Temp.
-20～70°C
Operating RH
15%～80%
Storage Temp.
-30～85°C
Storage RH
15%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
5.7kg/12.2kg(2pcs)
Package dimensions
588*188*523(mm)(2pcs)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤30W
Mount Interface
Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
19" Projected Capacitive touch screens
Touch input
USB -B
Response Time
≤12ms
Hardness
6H
Light Transmittance
≥85%
Active Area
378.32*303.06(mm)
Thickness
3.9±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V
Peep-proof protection film
Type
Peep-proof protection film
Guard against peep angle
Horizontal(left/right) 30°±5°
Thickness
580±50(um)
Light Transmittance
≥60%±5%
Sun protection film
Type
sun protection film
Ultraviolet blocking rate
100%
infrared blocking rate
96.90%
Thickness
0.1mm
Light Transmittance
67.30%
-
