Capacitive Touch Monitor KOT-0320U-CA4P
KOT-320P-011(KOT-0320U-CA4P)This PCAP touch monitor comes with main features as following: 1920*1080 high resolution, 1000:1 contrast ratio, 280 nits brightness with wide viewing angle. The PCAP touch monitor provides VGA, DVI and HDMI interfaces for use, USB for touch. It is pure flat designed, sleek and fashionable. In addition, the touch monitor is IP65 waterproof, dust proof and anti-vandal.
-
Advantages of PCAP Touch Monitor
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional). -
Complete Machine
Model No.
KOT-0320U-CA4P (P/N:KOT-320P-011)
Series
OT
Display Type
16:9 Ratio 31.5" TFT-LCD
Active Area
698.4*392.85(mm)

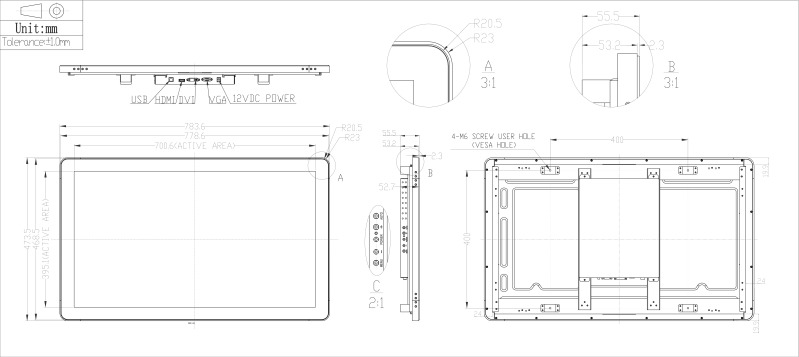

Monitor Dimensions (W*H*D)
783.6*473.5*55.5(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
280cd/㎡
With Touch Monitor
238cd/㎡
Response Time (Typ.)
8ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA\DVI\HDMI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
10.2Kg(1pcs)
Package dimensions
851*153*553(mm)(1pcs in one package)
Power Consumption
Standby Power: ≤2W / Operating Power: ≤40W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
32" Capacitive touch screens
Touch input
USB
Response Time
≤14ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
705.00*397.85(mm)
Thickness
4.3±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
