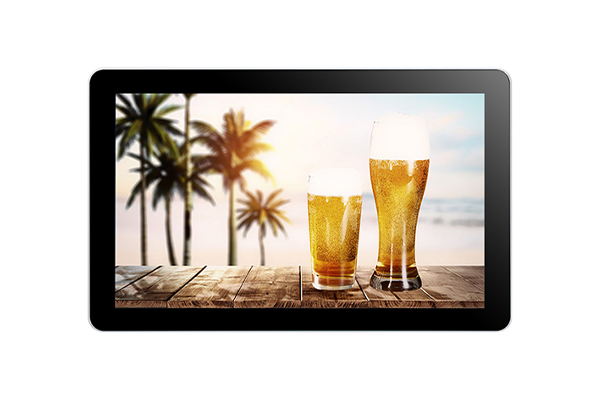

Capacitive Touch Monitor KOT-320P-028
KOT-320P-028"1.Integrated with Keetouch PCAP touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals

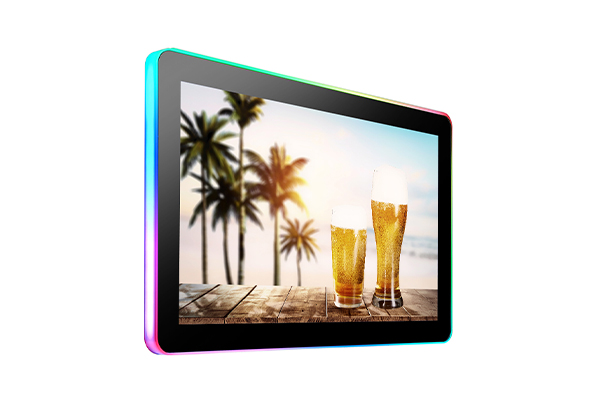

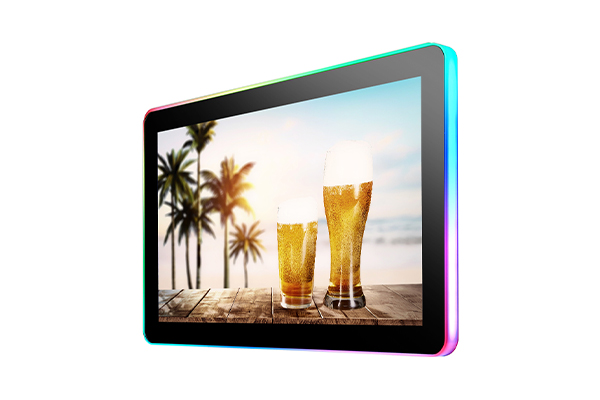

5.LED flexible strips"
-
Open Frame Touch Monitor Features：

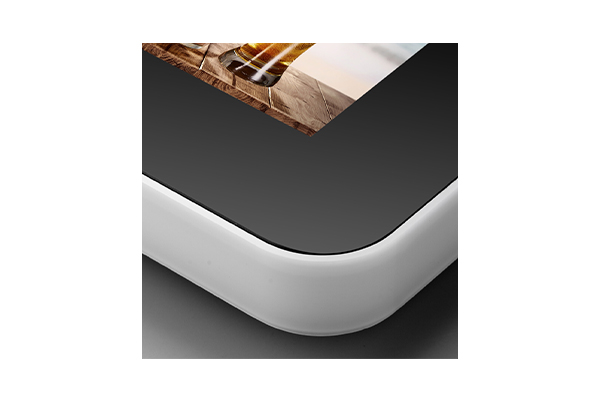

1、The screen structure adopts a dust-proof sealing design, effectively preventing dust and particles from entering the interior.
2、It utilizes high-sensitivity capacitive touch technology, offering fast response and precise operation for a smooth user experience.
3、The fully laminated process and waterproof sealing design prevent liquids from penetrating the screen's interior.
4、It is suitable for public spaces, finance, healthcare, and other scenarios with high privacy requirements.
5、Multiple specifications and models are available for customization and selection.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0320U-CA3P (P/N:KOT-320P-028)
Series
OT
Display Type
16:9 Ratio 31.5" TFT-LCD
Active Area
698.4*392.85(mm)

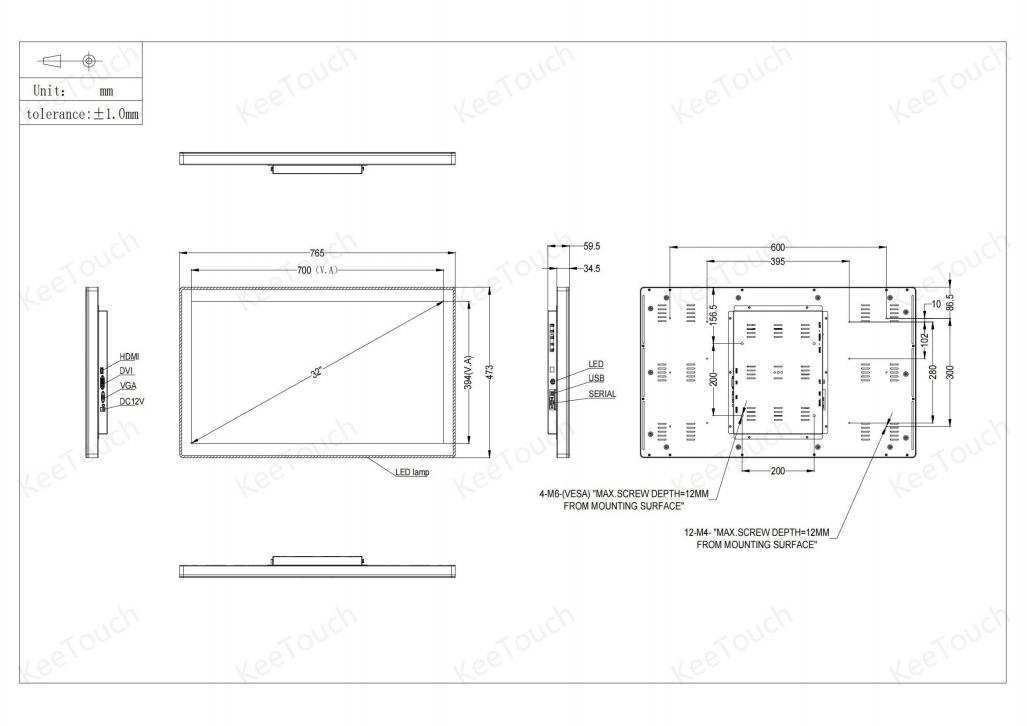

Monitor Dimensions (W*H*D)
765*473*59.5(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
280cd/m2
With Touch Monitor
238cd/m2
Response Time (Typ.)
6.5ms
Viewing Angle(Typ.at CR＞10) ）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA\DVI\HDMI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Operating Temp.
0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（ N.W/G.W ）
14.3Kg(1pcs)/16Kg(1pcs in one package)
Package dimensions
850*155*555(mm)(1pcs in one package)
Power Consumption
Standby Power: ≤2W / monitor operating power:≤40W light bar power:≤15W
Mount Interface
1.VESA 200*200 mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO, +,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
32" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
700*394(mm)
Thickness
4.3±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
